DB-09KH1 9mm Rotary Potentiometer

Brand: HW
MOQ: 1000 Pieces
Delivery time: 15 Day
Product Details

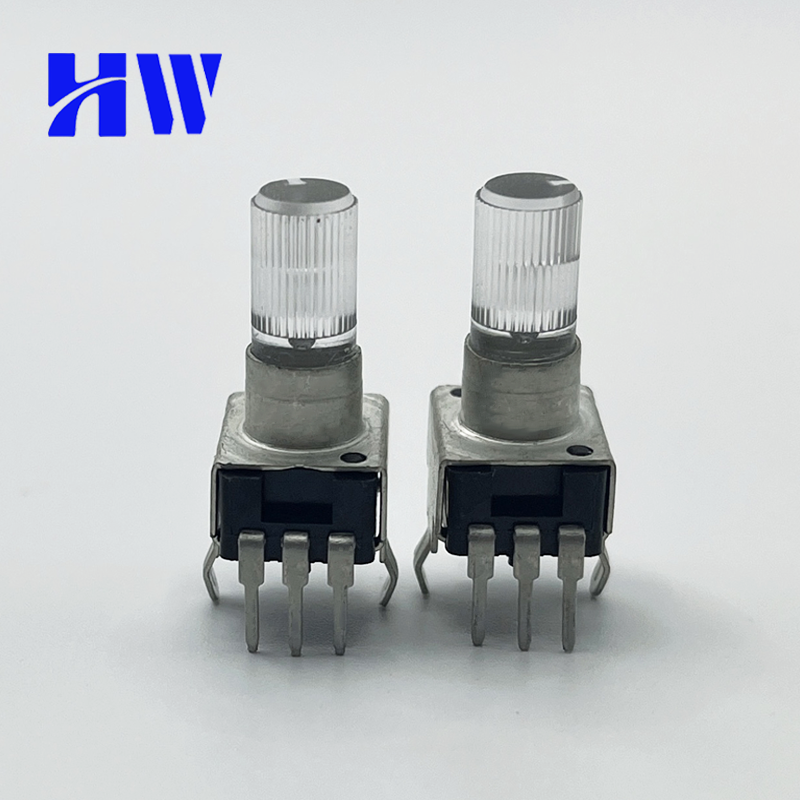

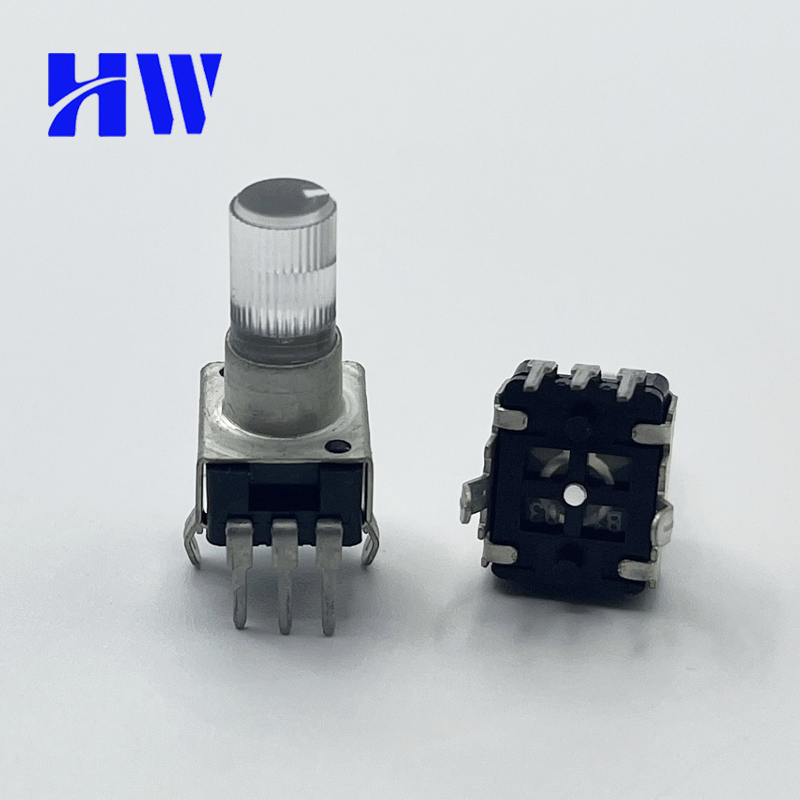

DESCRIPTION: DB09KH1 Rotary Potentiometer with transparent shaft
HOWANG P/N: DB-09KH1
MECHANICAL CHARACTERISTIC 1. Total Rotation angle: 280 ±  10
2. Rotational Torque: 20 ~ 90 gf.cm
3. Rotation Stopper Strength3.0  Kgf.cm Min
4. Push-Pull Strength of Shaft: Pull:  5.0  Kg.f MaxPush: 5.0  Kg.f  Max. at 10 sec
5. Rotational life:  Standard Life: 15,000 cyclesLong Life: 100,000 cycles
ELECTRICAL CHARACTERISTIC 1. Total resistance: 1K~1MΩ
2. Resistance taper: A/B/C/D or others
3. Rated power: Single unit: 0.05W;Dual unit: 0.03W
4.Insulation resistance: More than   100  MΩ at DC  250  V
5.Residual Resistance:Less than  20  Ω
6.Linearity Tolerance:Less than ±2%

xxxx





This is an introduction about HOWANG 9mm rotary potentiometer series. We have many sizes and specifications for choice. Please be free to leave us a message below or contact us to learn more technical and price details. Our team will quickly respond within 24 hours.
