Product Details

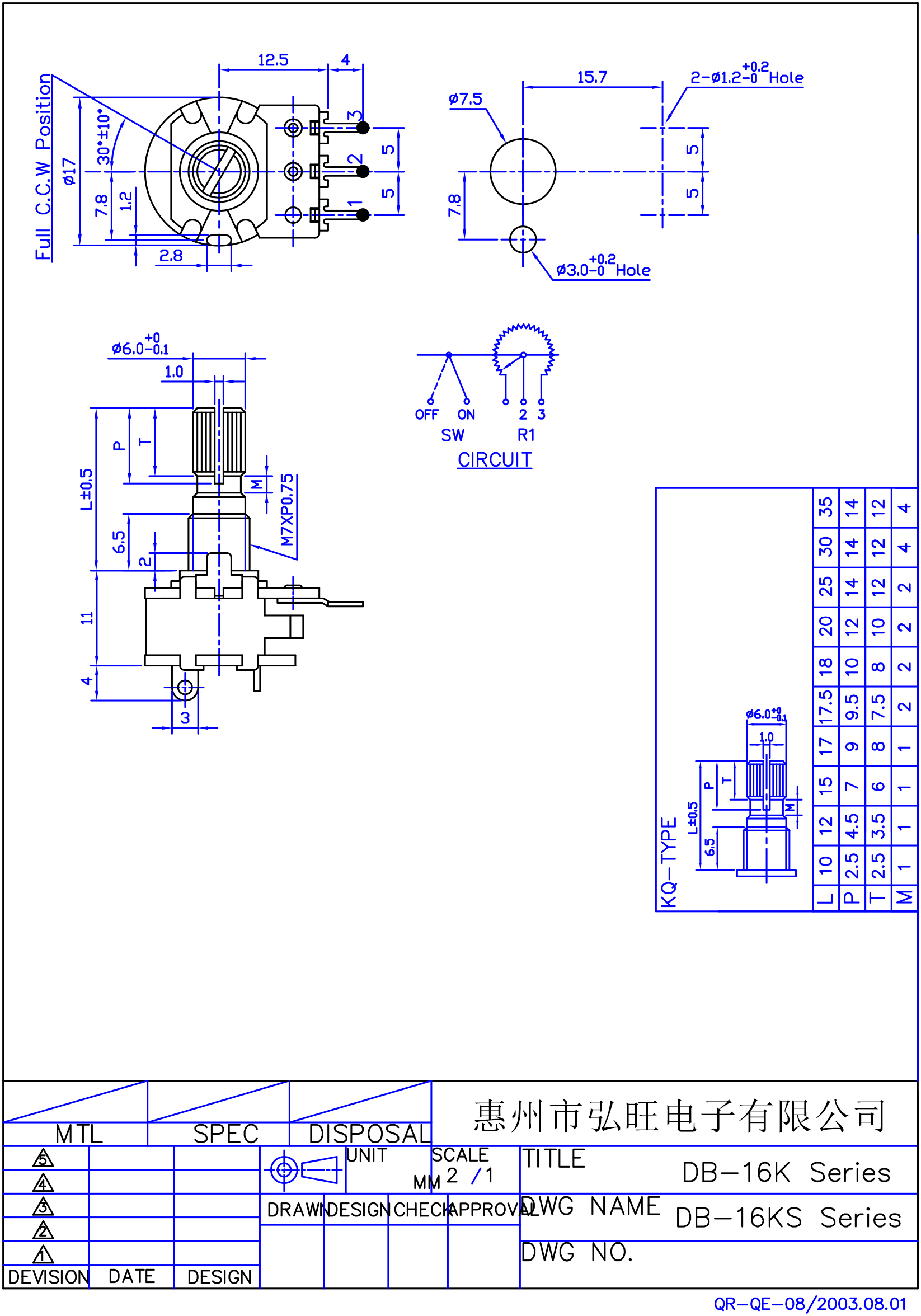

| DESCRIPTION: | DB-16KS Rotary potentiometer |
| HOWANG P/N: | DB-16KS |
| MECHANICAL CHARACTERISTIC | 1. Rotational Torque: 20 ~ 100 gf.cm |
| 2. Rotation Stopper Strength：7.0 Kgf.cm Min | |
| 3. Rotational life: Standard Life: 10,000 cycles； | |
| ELECTRICAL CHARACTERISTIC | 1. Total resistance: 500Ω~1MΩ |
| 2. Resistance taper: A/B/C/D,etc | |
| 3. Rated power: Linear taper: 0.2W;Other taper: 0.1W | |
| 4.Sliding noise:Less than 100 Mv | |
| 5.Insulation resistance: More than 100 MΩ at DC 500 V | |
| 6.Residual Resistance:Less than 20 Ω |

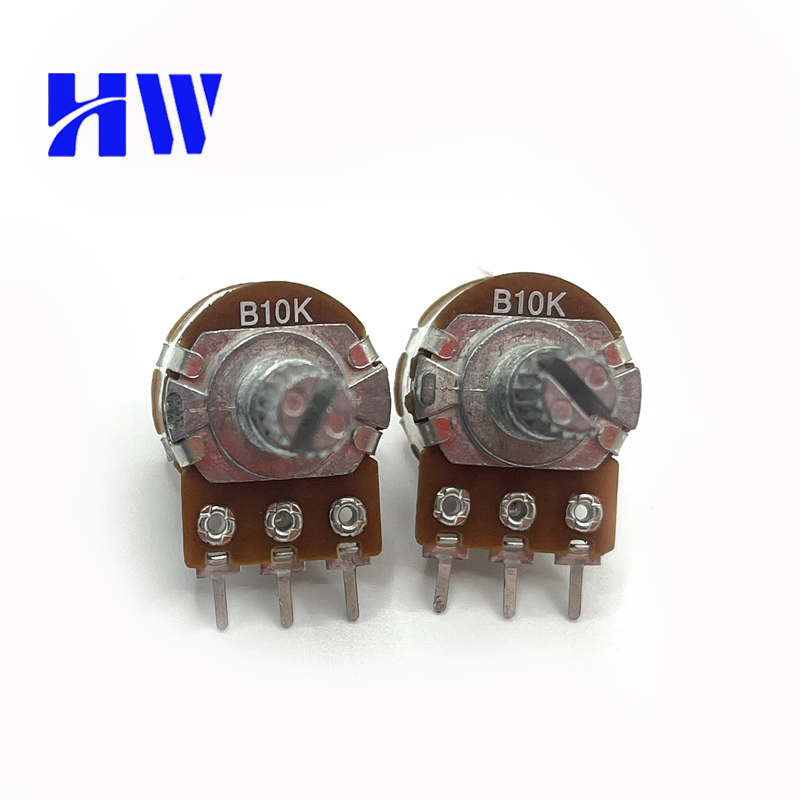

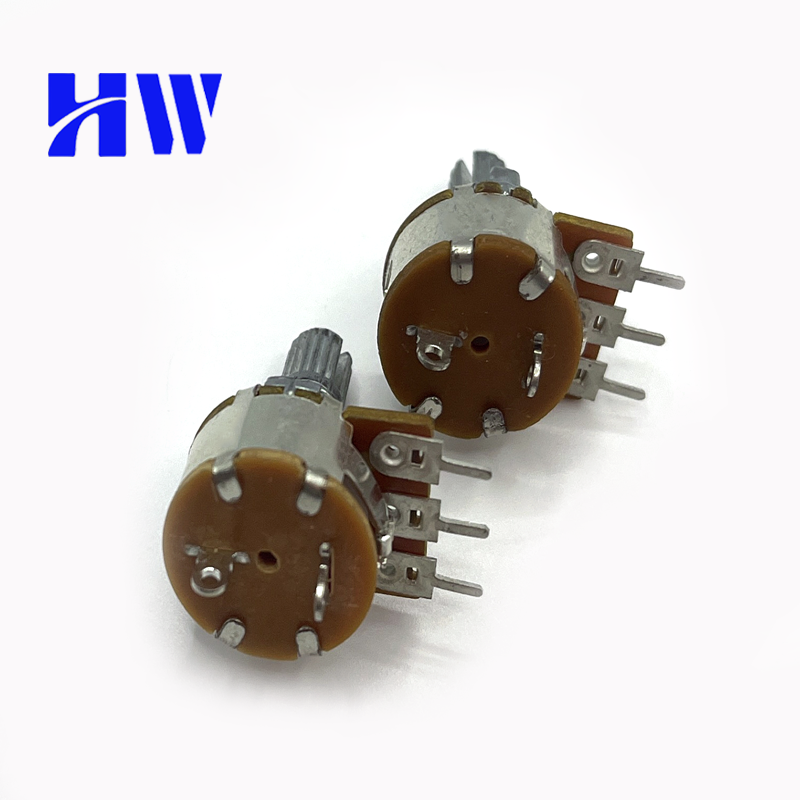

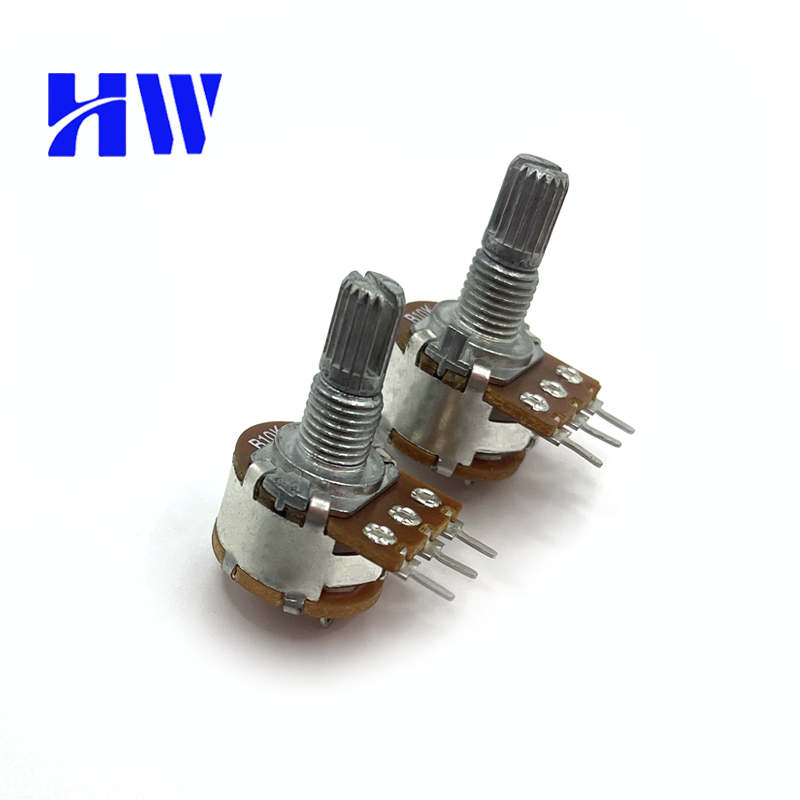

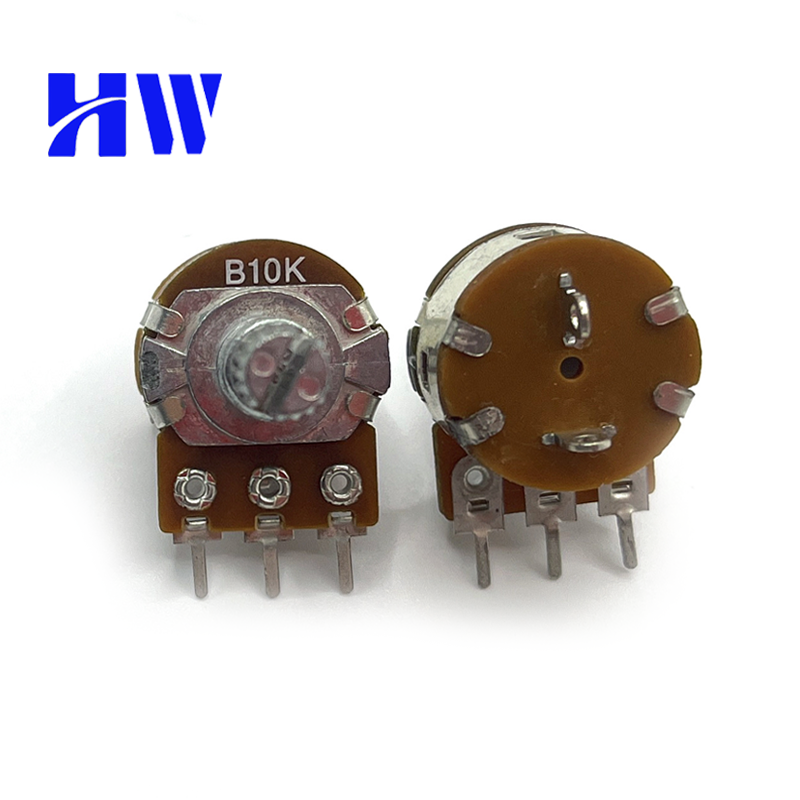

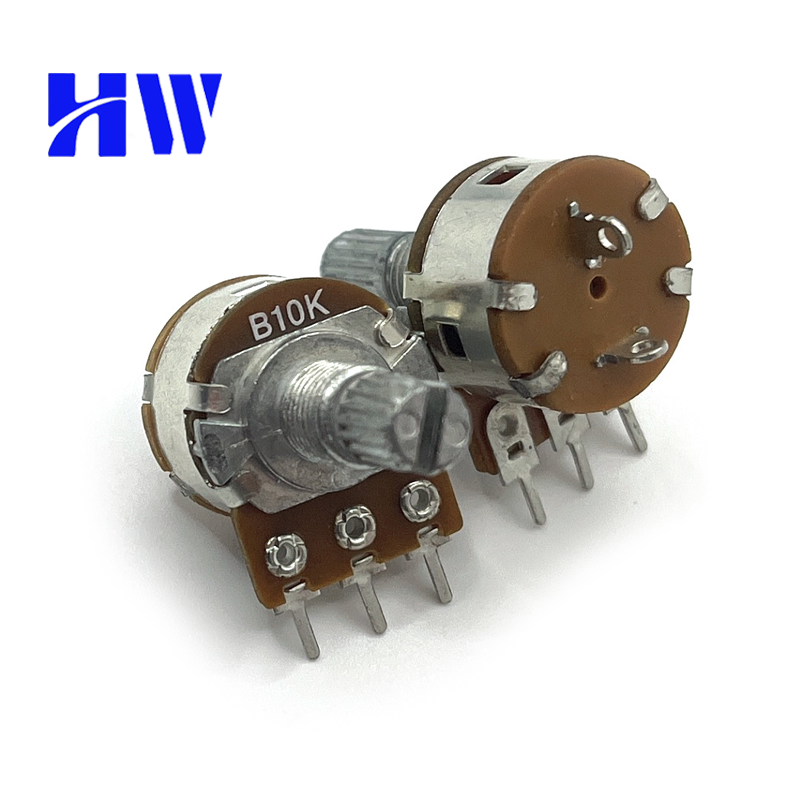

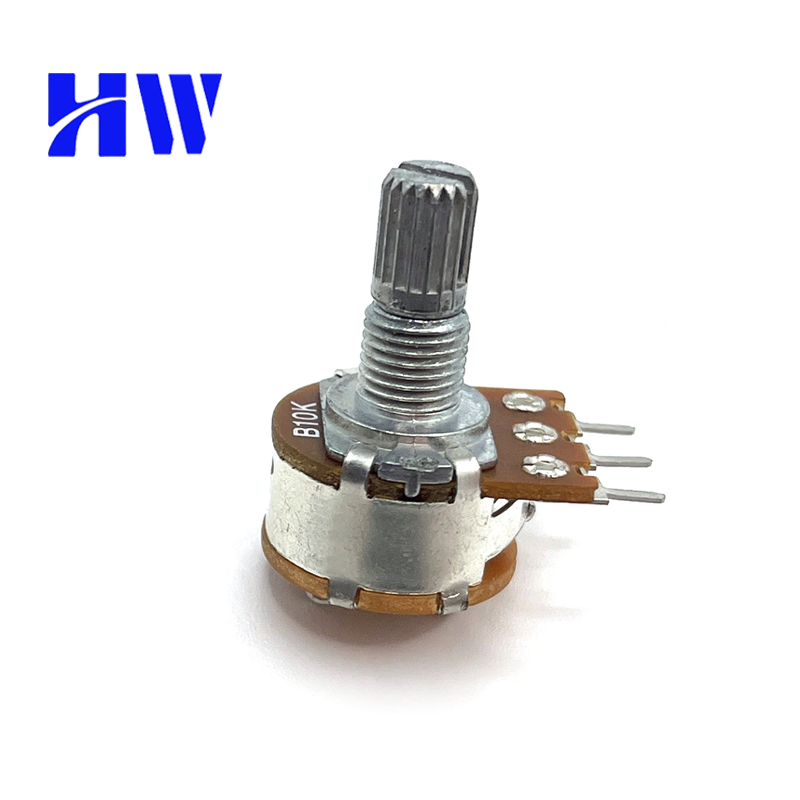

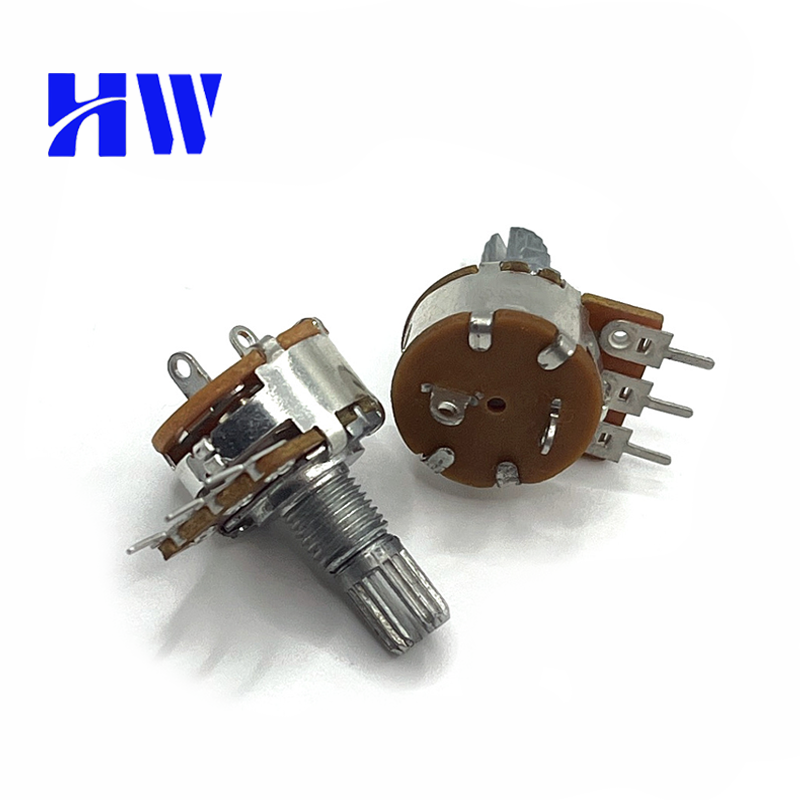

This is an introduction about HOWANG DB-16K series 16mm rotary potentiometer. We have many sizes and specifications for choice. Please be free to leave us a message below or contact us to learn more technical and price details. Our team will quickly respond within 24 hours.
