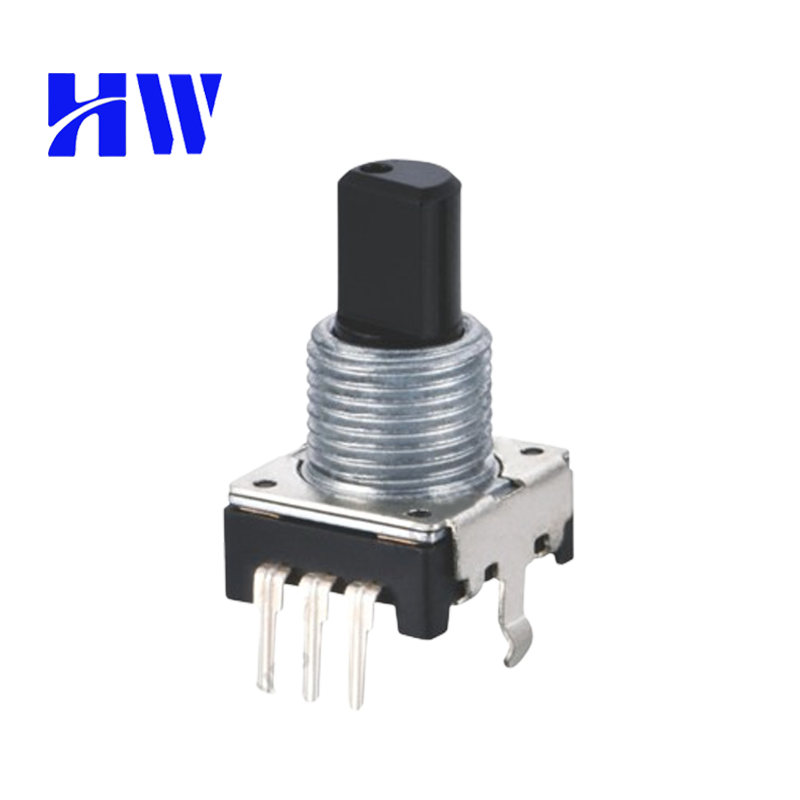

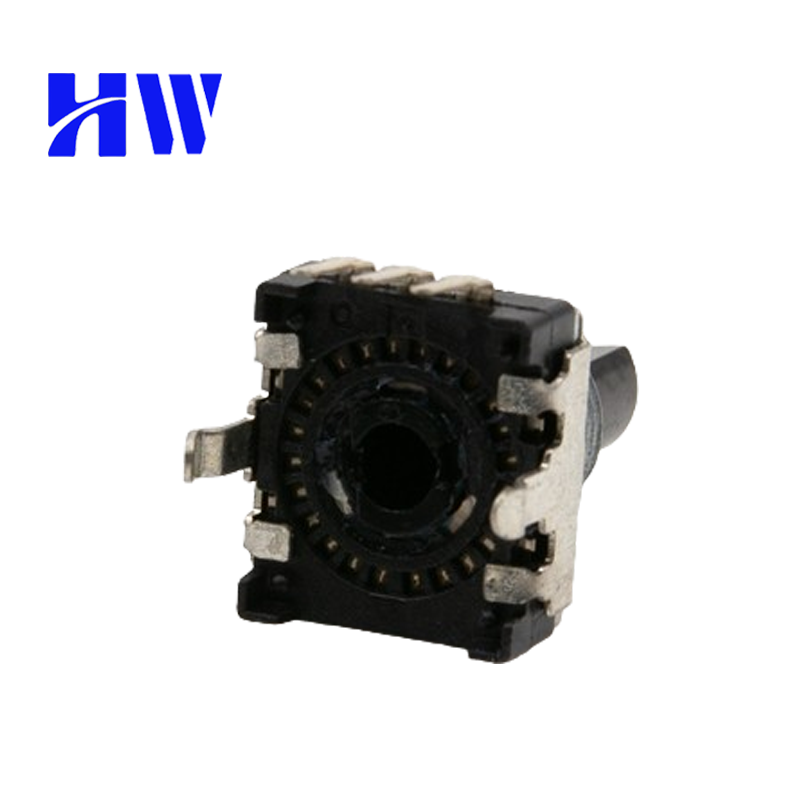

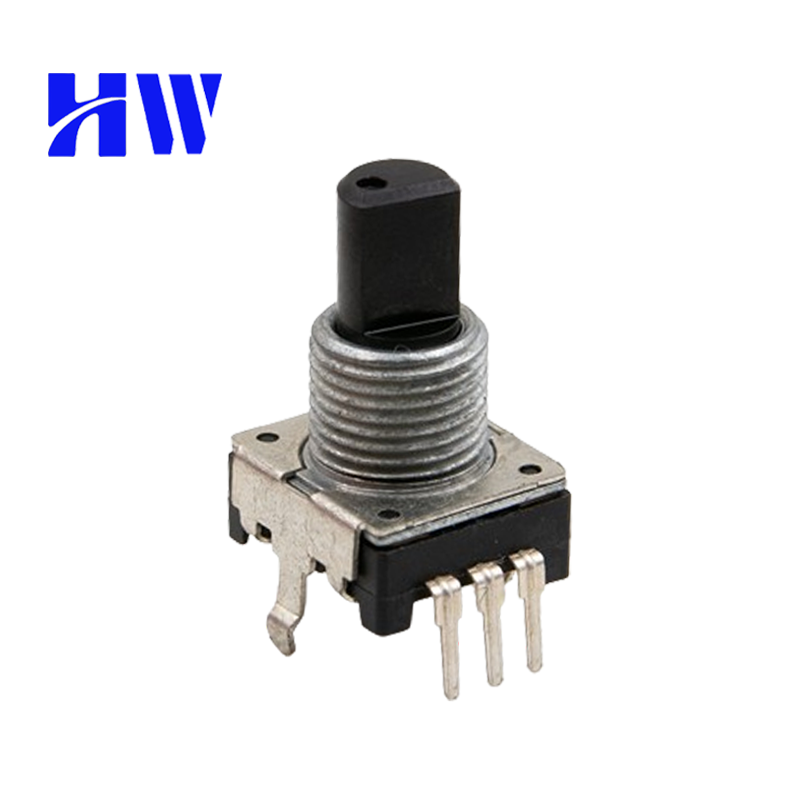

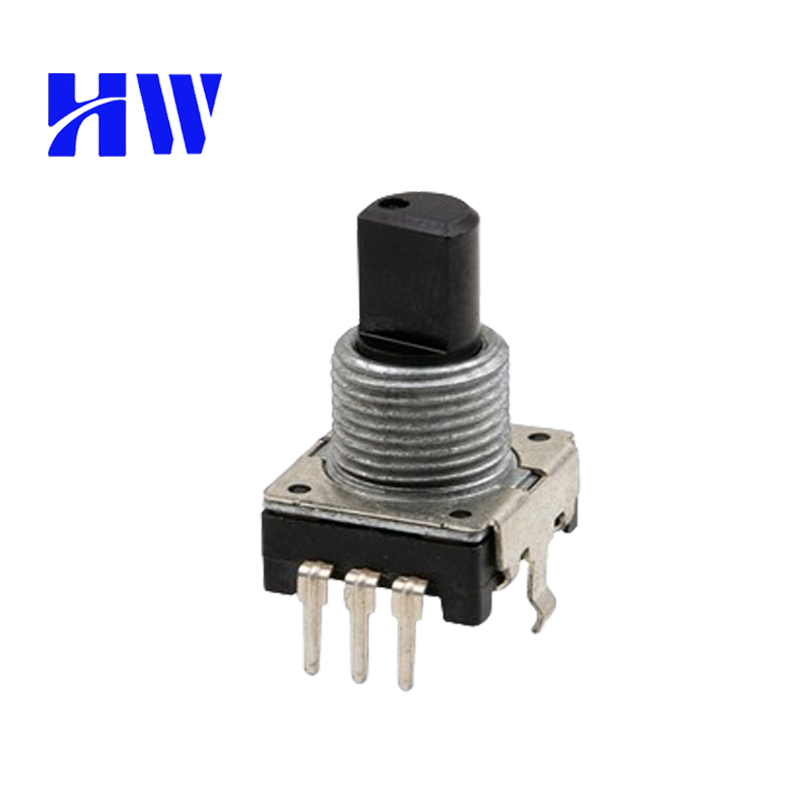

EC12 Rotary Encoder

EC12 Rotary Encoder

Brand: HW

MOQ: 1000 Pieces

Delivery time: 15 Day

E-mail: export@howang-electronics.com

Contact Us Inquiry Download

Product Details

DESCRIPTION:	EC12 Rotary Encoder
HOWANG P/N:	DB-EC12C20V01
MECHANICAL CHARACTERISTIC	1. Rotational life: 30,000 cycles
	2. Total rotational angle: 360^。Endless
	3. Push-pull strength of shaft: 5.1kgf min
	4. Bushing nut tighting 10kgf.cm min
	5. Number and position of detent: 12 detents; 18 detents; 24 detents
ELECTRICAL CHARACTERISTIC	1. Rated power: DC5V 10mA (1mA min)
	2. Fluttering: T1,T3 ≤3ms
	3. Contact resistance: 100m Ω max
	4. Insulation resistance: more than 10mΩ at 250V 1mA
	5. Withstand voltage: AC 50V-1 minute
	6. Sliding noise: T2 ≤2ms

We have many sizes and specifications of EC12 series Rotary Encoder, please contact us for quickly recommendation and more details.

This is an introduction about HOWANG EC12 rotary encoder. Please be free to leave us a message below or contact us to learn more technical and price details. Our team will quickly respond within 24 hours.
